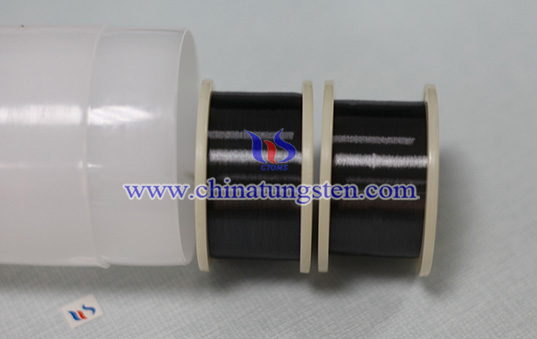

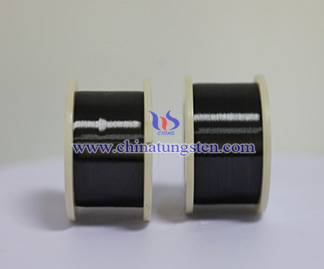

Fine Tungsten Wire

Fine tungsten wire typically refers to tungsten wire with a diameter of φ0.02 mm–φ0.1 mm, primarily used in applications demanding high precision, rapid response, and stable emission performance. CTIA ensures stable performance of fine tungsten wire across different applications through comprehensive control of raw material purity, wire drawing processes, and dimensional accuracy.

1. Properties of Fine Tungsten Wire
Fine tungsten wire features a high melting point, high density, and low vapor pressure, ensuring stable performance in high-temperature environments. Due to its small diameter and large surface area-to-volume ratio, it offers fast thermal response and enables rapid heating and cooling under electrical current. Its smaller cross-sectional area results in higher electrical resistance, making it suitable for low-current heating applications such as precision or micro-scale heat sources. Although it retains strength at high temperatures, its load-bearing capacity and anti-sag performance are lower compared to thicker wires, making it more suitable for light-load or non-structural applications.

2. Specifications of Fine Tungsten Wire
Fine tungsten wire typically has a diameter range of φ0.02 mm to φ0.1 mm:

2.1 φ0.02–0.05 mm: used for micro heating elements and high-precision electron emission.
2.2 φ0.05–0.1 mm: used for precision heating structures and electronic devices.

3. Applications of Fine Tungsten Wire
Fine tungsten wire is mainly used in applications requiring high dimensional accuracy, fast thermal response, and stable performance:

3.1 Precision Heating Elements
Used as micro resistive heating wires, enabling rapid temperature rise under low current conditions for localized or micro-area heating.

3.2 Electron Emission Components
Used as thermionic emission sources or filament cathodes, releasing electrons under heating for electron transport or signal amplification.

3.3 Microstructures and Precision Components
Used in micro-scale structural parts or precision supports for functional integration in space-constrained systems.

3.4 Research and High-Precision Experiments
Used in high-temperature testing or micro-scale experimental environments requiring precise thermal response and stability.

4. Surface Condition of Fine Tungsten Wire
Fine tungsten wire is available in black tungsten wire and cleaned tungsten wire. Black tungsten wire retains an oxide layer and is used for general heating or structural applications. Cleaned tungsten wire has a purer surface through chemical or electrolytic treatment. Due to its small diameter and high surface area, surface condition significantly affects resistance distribution, heating uniformity, and emission stability. Therefore, cleaned tungsten wire is typically preferred for precision and emission-related applications. In vacuum or high-temperature environments, a clean surface helps reduce outgassing and contamination risks, improving operational stability.

For sourcing decisions, CTIA recommends prioritizing wire diameter accuracy, surface condition, and operating current, while taking application environments into account to balance response speed, electrical performance, and operational reliability. With appropriate selection of material systems and specifications, consistent performance can be achieved across a range of precision applications.
