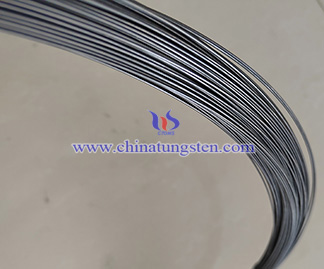

CTIA Tungsten Wire Applications

CTIA tungsten wire offers a high melting point, low vapor pressure, and strong creep resistance, ensuring stable performance in high-temperature, vacuum, and electron emission environments. It is produced through powder metallurgy, hot isostatic pressing, and multi-pass cold drawing, with diameter tolerance controlled within ±0.001 to 0.01 mm and a surface roughness of Ra ≤ 0.2 μm.

CTIA tungsten wire is widely used in industrial heating, vacuum electronic devices, microelectronics, photovoltaic cutting, medical applications, and scientific research, providing reliable support for high-performance equipment. Its high-temperature stability, fatigue resistance, and long service life make it a key material for advanced industrial and scientific systems.

1. CTIA Tungsten Wire in High-Temperature Heating and Evaporation Coating
Tungsten wire operates as both a heating element and structural support in high-temperature heating and evaporation coating processes. Its high melting point and excellent creep resistance ensure stable operation at 2000–2500°C. With precise powder metallurgy and multi-pass cold drawing, the wire achieves uniform diameter, Ra ≤ 0.2 μm surface roughness, and tensile strength of 750–900 MPa, ensuring uniform heating output while reducing maintenance frequency. It is widely used in vacuum evaporation coating, thin film deposition, metal film production, optical coating, and solar cell film preparation. CTIA ensures consistent high-temperature performance and structural stability through strict raw material selection and drawing process control.

2. CTIA Tungsten Wire in Vacuum and Electronic Devices
Tungsten wire acts as an electron emission element and support material in vacuum electronic devices. Its high purity, low vapor pressure, and stable resistivity enable long-term use without oxidation or degradation under high vacuum (10⁻⁶ Pa). High thermal conductivity, combined with uniform diameter and smooth surface (Ra ≤ 0.2 μm), ensures stable and consistent electron emission in precision systems. It is widely used in scanning electron microscopes, transmission electron microscopes, ion beam systems, electron beam welding equipment, and electron multipliers.

3. CTIA Tungsten Wire in Lighting Industry
Tungsten wire forms the filament and structural framework in incandescent lamps, halogen lamps, and industrial high-temperature lighting systems. Its high melting point and creep resistance ensure stable light emission at 2000–2500°C without deformation or breakage. Uniform diameter and high mechanical strength improve brightness and efficiency while extending service life to 1000–2000 hours. It is widely used in laboratory lighting, industrial heating lamps, stage lighting, high-temperature ovens, and optical instruments. CTIA ensures consistent filament performance through optimized drawing and heat treatment processes.

4. CTIA Tungsten Wire in High-Temperature Measurement and Sensors
Tungsten wire enables precise sensing performance in thermocouples, infrared sensors, and temperature measurement devices in high-temperature environments. It delivers high accuracy and rapid response at 1500–2200°C. Its high melting point, thermal conductivity, and oxidation resistance maintain dimensional stability during prolonged operation. With diameters ranging from 0.02–1.0 mm and oxide-free surfaces, it ensures repeatability and sensitivity in measurement processes.

5. CTIA Tungsten Wire in Research Equipment
Tungsten wire supports heating, positioning, and electron emission functions in research equipment such as high-temperature furnaces, electron beam systems, and material characterization devices. It operates reliably at temperatures up to 2500°C, with strong creep resistance ensuring experimental consistency. High tensile strength, uniform diameter, and smooth surface enable resistance to repeated bending and thermal fatigue. CTIA ensures reliability through purity control and microstructure optimization.

6. CTIA Tungsten Wire in Electrical Components
Tungsten wire maintains stable electrical conduction and contact performance in aerospace and industrial high-temperature electrical systems. It withstands several amperes of current without deformation. Stable resistivity and creep resistance ensure long-term conductivity in relays, fuses, and precision switches.

7. CTIA Tungsten Wire in Photovoltaic Cutting Lines
Tungsten wire ensures precise and stable cutting performance under high tension, friction, and thermal load in photovoltaic silicon wafer processing. With diameter tolerance of ±0.002 mm, Ra ≤ 0.2 μm surface roughness, and tensile strength of 800–900 MPa, it ensures stable cutting without deformation or breakage. CTIA ensures high-strength performance through multi-pass drawing and precise tension control.

8. CTIA Tungsten Wire in Medical Device Components
Tungsten wire is applied as a guide wire, support wire, and heating element in minimally invasive instruments, laboratory devices, and medical imaging systems. Its high density and chemical stability ensure reliability in precision applications. Tight diameter tolerance (±0.002 mm) and high temperature resistance ensure stable and accurate operation.

9. CTIA Tungsten Wire in Textile
Tungsten wire provides heating capability and structural stability in high-temperature drying, stretching, and shaping equipment in the textile industry. It maintains dimensional stability at temperatures up to 1800°C. It also acts as reinforcement in high-temperature composite materials, improving strength and thermal stability. CTIA ensures consistent performance through grain structure control and process optimization.

10. CTIA Tungsten Wire in Material Processing Auxiliary
Tungsten wire is utilized as a conductor, support, and cutting element in micro-cutting, welding, and precision processing equipment. It provides high strength and wear resistance under high-speed friction and tension conditions. With diameters as small as 0.01 mm and smooth surfaces (Ra ≤ 0.2 μm), it ensures precision and durability in micro-scale applications.

11. CTIA Tungsten Wire in Composite Reinforcement
Tungsten wire delivers high-temperature strength and structural stability as a reinforcement phase in composite materials. Its creep resistance enhances structural reliability under thermal load. CTIA ensures material consistency through high-purity tungsten and precision forming processes.

12. CTIA Tungsten Wire in Anti-Corrosion Parts
Tungsten wire operates as a structural support and corrosion-resistant element in chemical, metallurgical, and high-temperature corrosive environments. It maintains stability against acids, alkalis, and oxidation during long-term operation.

13. CTIA Tungsten Wire in Micro-Mechanical Parts
Tungsten wire enables high-precision structural and functional integration in micro-mechanical components requiring tight tolerances and stability. High hardness, ±0.002 mm tolerance, and smooth surface finish (Ra ≤ 0.2 μm) ensure resistance to fatigue and creep under cyclic loading. CTIA ensures consistency through precision drawing and inspection.

14. CTIA Tungsten Wire in High-Temperature Filters and Supports
Tungsten wire supports load-bearing structures and maintains dimensional stability in high-temperature filtration systems. Its mechanical strength, corrosion resistance, and wear resistance ensure long-term operation at temperatures up to 2000°C.

Tungsten wire plays an irreplaceable role across industry, research, and advanced manufacturing with high melting point, strength, and stable electrical and chemical properties. CTIA ensures dimensional consistency, stable performance, and long-term reliability through strict material selection, precision drawing, and full-process quality control, providing efficient and reliable tungsten wire solutions.
