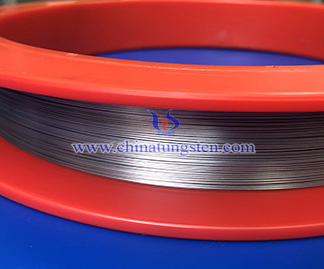

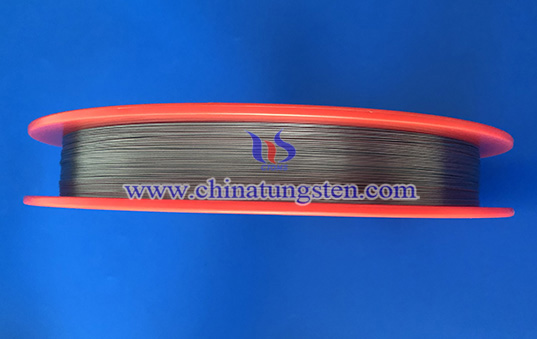

Thoriated Tungsten Wire

Thoriated tungsten wire is a dispersion-strengthened tungsten wire formed by introducing a certain proportion of thorium oxide (ThO₂) into a tungsten (W) matrix. The typical ThO₂ content ranges from 0.5% to 2.0% by mass. Common grades include WT10, corresponding to 1.0% ThO₂, and WT20, corresponding to 2.0% ThO₂.

Based on CTIA manufacturing experience, ThO₂ is distributed in the tungsten matrix as fine dispersed particles. Through dispersion strengthening and grain boundary regulation, it maintains tungsten’s intrinsic high melting point and low vapor pressure while significantly improving electron emission capability and high-temperature structural stability, enabling more stable overall performance in high-temperature service conditions.

1. Properties of Thoriated Tungsten Wire
The core of thoriated tungsten wire lies in the balance between electron emission performance and high-temperature stability. At elevated temperatures, thorium oxide migrates to the surface to form an active layer, reducing the work function from about 4.5 eV for pure tungsten to approximately 2.6–3.0 eV, thereby improving thermionic emission efficiency. Under the same emission current, the operating temperature can be reduced by about 100–300°C, which helps extend service life.

ThO₂ is dispersed along grain boundaries, inhibiting grain boundary migration and slowing grain growth, thereby improving high-temperature creep resistance and structural stability. Within the temperature range of approximately 1800–2600°C, it maintains stable emission performance and morphology. In addition, thoriated tungsten wire exhibits excellent arc ignition performance and arc stability, with more uniform current distribution and reduced risk of localized overheating, making it suitable for electrode applications.

2. Specifications of Thoriated Tungsten Wire
The typical diameter range of thoriated tungsten wire is φ0.1 mm to φ3.0 mm:

2.1   φ0.1–0.3 mm: used for electron emission elements and fine wire electrodes.
2.2   φ0.3–1.0 mm: used for welding electrodes and discharge structures.
2.3   above φ1.0 mm: used for high-temperature support or large electrode assemblies.

Diameter tolerance typically within ±1%, in precision applications up to ±0.01 mm. Diameter uniformity directly affects current density distribution and emission stability in electron emission applications.

3. Surface Condition of Thoriated Tungsten Wire
Thoriated tungsten wire is available in black tungsten wire and cleaned tungsten wire. Black tungsten wire retains an oxide film formed during drawing and annealing and is suitable for general electrode or structural use. Cleaned tungsten wire undergoes alkaline or electrolytic polishing, resulting in higher surface cleanliness and lower impurity content.

Surface cleanliness directly influences emission uniformity and cathode service life in electron emission and vacuum environments. Residual impurities may cause localized discharge instability or vacuum system contamination. So, cleaned tungsten wire is typically used in high-requirement applications.

4. Applications of Thoriated Tungsten Wire
Thoriated tungsten wire is mainly used in applications requiring high electron emission performance, arc stability, and high-temperature reliability:

4.1 Tungsten Inert Gas (TIG) Welding Electrodes
Commonly used as electrodes for DC welding, offering low ignition voltage, stable arc performance, and low burn-off rate, suitable for stainless steel and high-temperature alloy welding.

4.2 Vacuum Electronic Devices
Used in electron tubes, cathode assemblies, and thermionic systems, relying on stable thermionic emission to achieve continuous electron output at relatively lower operating temperatures.

4.3 Plasma and Discharge Equipment
Applied in plasma torches and arc discharge sources, utilizing its high current-carrying capacity and strong arc erosion resistance.

4.4 High-Temperature Emission and Experimental Systems
Used in electron emission experiments and high-temperature physics research, maintaining stable emission performance under long-duration high-temperature operation.

The performance of thoriated tungsten wire depends on the combined effects of ThO₂ content, dispersion distribution, and processing technology. Its advantages are reflected in emission stability, arc behavior, and high-temperature structural integrity. CTIA recommends that sourcing decisions focus on ThO₂ content, target emission current density, operating temperature range, and service environment, while also considering diameter tolerance and batch consistency, as these factors directly affect service life and performance stability.
