Tungsten Wire Classification

As a professional tungsten wire manufacturer, CTIA GROUP systematically controls composition design, microstructure, surface condition, and dimensional accuracy through powder metallurgy and precision wire drawing processes. The performance of tungsten wire is not determined by a single factor but results from the combined effects of material system, microstructure, and processing condition, which influence high-temperature strength, creep resistance, electron emission stability, and service life. Therefore, tungsten wire should not be classified by a single criterion. Instead, it should be systematically categorized based on composition (material system), surface condition, and dimensional specifications. These classification dimensions are interrelated and together form a complete product system corresponding to different process control focuses and application scenarios.

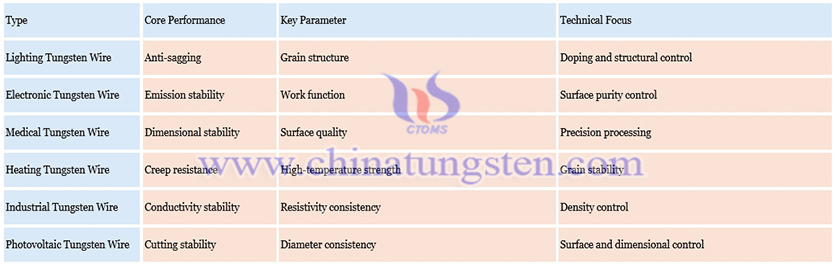

1. Classification by Application
Tungsten wire can be classified according to application scenarios. Different applications require different levels of high-temperature performance, structural stability, and operational reliability. CTIA GROUP optimizes grain structure, purity control, and processing conditions to match specific working environments.

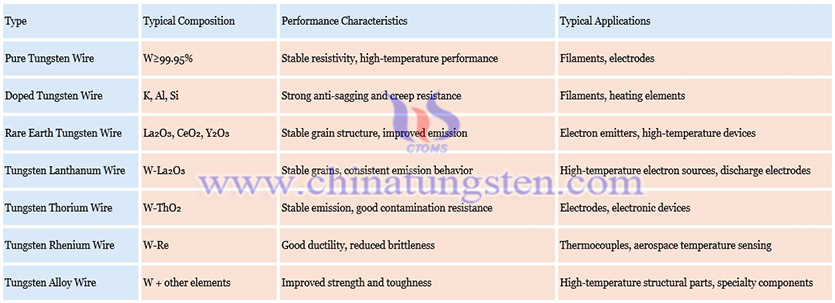

2. Classification by Composition (Material System)
The material system is a key factor determining tungsten wire performance. CTIA GROUP controls raw material purity and doping element content to achieve stable production of different performance grades. At the microstructural level, pure tungsten wire is based on a Body-Centered Cubic (BCC) crystal structure. Doped tungsten wire incorporates K, Al, and Si elements, forming potassium bubble rows during sintering and wire drawing, which suppress lateral grain growth at high temperatures. Alloy systems improve overall properties through solid solution strengthening or dispersion strengthening mechanisms.

Pure tungsten wire is based on high-purity tungsten and provides fundamental high-temperature performance. Doped tungsten wire introduces K, Al, and Si elements to enhance anti-sagging and creep resistance while improving electron emission behavior. Tungsten alloy wires, such as tungsten rhenium wires (W-Re) and other tungsten alloy wires, improve ductility, strength, and overall mechanical performance through solid solution strengthening to meet different operating requirements.

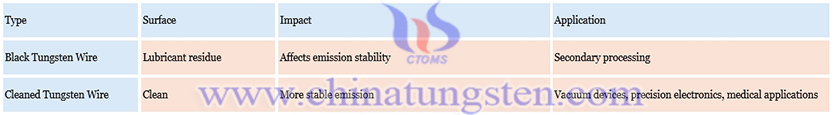

3. Classification by Surface Condition

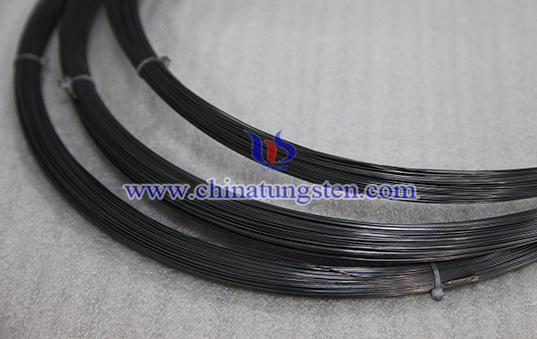

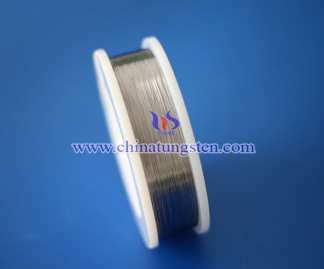

The surface condition of tungsten wire directly affects cleanliness and electron emission behavior, especially in vacuum electronic and precision devices. Different surface treatments result in different residual contents and interface states, which influence performance. CTIA GROUP provides black tungsten wire and white tungsten wire according to application needs. Black tungsten wire retains lubricant residues from drawing, facilitating further processing. White tungsten wire undergoes chemical cleaning and heat treatment to remove surface residues, offering higher cleanliness and improved emission stability.

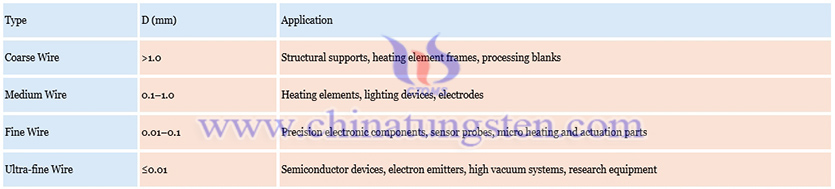

4. Classification by Diameter
CTIA GROUP provides a wide range of tungsten wire products from ultra-fine to coarse specifications through multi-pass wire drawing and dimensional control processes. Diameter directly affects dimensional consistency and application precision. Ultra-fine tungsten wire (≤0.1 mm) requires tighter tolerances and higher surface quality, mainly used in high-precision applications. Medium specifications are suitable for general industrial and electronic uses. Coarse wire is typically used for structural support or as raw material for further processing.

The classification system of tungsten wire is not based on a single dimension but is structured around multiple factors including material system, application requirements, surface condition, and dimensional specifications. These dimensions are interrelated and collectively determine overall performance in high-temperature and electronic applications. CTIA GROUP applies systematic control over purity, doping systems, grain structure, and processing precision to ensure stable performance across lighting, electronics, medical, and industrial fields, while also providing customized solutions for specific operating conditions.
